LMB...UU..OP Series

Ložisko řady LMB...UU..OP

CHCETE TEĎ ZAKOUPIT TUTO POLOŽKU?

Okamžitě vám nabídneme bezplatný vzorek a nejkratší dodací lhůtu.

Odeslat dotaz
PDF
Hot tags: China lmb...uu..op series bearing suppliers, lmb...uu..op series bearing factory, lmb...uu..op series bearing price

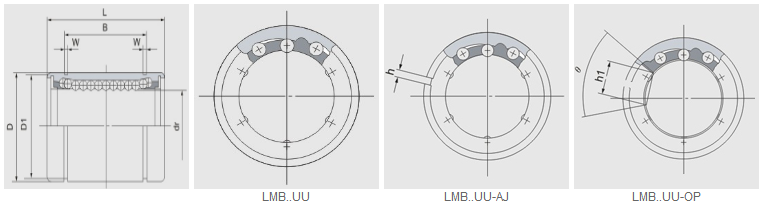

vybratPoptávkaDržák pryskyřiceJmenovitý průměr hřídeledr Hlavní rozměry a toleranceExcentricitaRadiální vůle (Max)Základní nosnost (kN)
LMB…UUKulový obvodVáha (kg)LMB…UU-AJKulový obvodHmotnostLMB…UU-OPKulový obvodVáha (kg)InchmmInchmmPrecision(Inch)Precision(μm)High(Inch)High(μm)D(Inch/mm)D Tolerance（inch）D Tolerance（(μm）L(Inch/mm)L Tolerance(inch)L Tolerance(μm)B(Inch/mm)B Tolerance(Inch)B Tolerance(μm)W(Inch/mm)D1(Inch/mm)h(Inch/mm)h1(Inch/mm)θPřesnostVysokýDynamickýStatický
LMB4 bearing 4 8 LMB4-AJ 4 7.5 — — — 1/4 6.35 0.25 6.35 0/-.00025 0/-6 0/-.00040 0/-9 .5000/12.700 0/-.00045 0/-11 .7500/19.050 0/-.008 0/-200 .5110/12.98 0/-.008 0/-200 .0390/0.992 .4687/11.906 .04/1 — — .0003/8 .0005/12 -.0001/-3 206 265
LMB6UU bearing 4 14 LMB6UU-AJ 4 13.5 — — — 3/8 9.525 0.375 9.525 0/-.00025 0/-6 0/-.00040 0/-9 .6250/15.875 0/-.00050 0/-13 .8750/22.225 0/-.008 0/-200 .6358/16.15 0/-.008 0/-200 .0390/0.992 .5880/14.935 .04/1 — — .0003/8 .0005/12 -.0001/-3 225 314
LMB8UU bearing 4 37 LMB8UU-AJ 4 36.5 LMB8UU-OP 3 28 1/2 12.7 0.5 12.7 0/-.00025 0/-6 0/-.00040 0/-9 .8750/22.225 0/-.00050 0/-13 1.2500/31.750 0/-.008 0/-200 .9625/24.46 0/-.008 0/-200 .0459/1.168 .8209/20.853 .06/1.5 .34/7.9375 80° .0003/8 .0005/12 -.0001/-3 510 784
LMB10UU bearing 4 76 LMB10UU-AJ 4 74 LMB10UU-OP 3 57 5/8 15.875 0.625 15.875 0/-.00025 0/-6 0/-.00040 0/-9 1.1250/28.575 0/-.00050 0/-13 1.5000/38.100 0/-.008 0/-200 1.1039/28.04 0/-.008 0/-200 .0559/1.422 1.0590/26.899 .06/1.5 .375/9.525 80° .0003/8 .0005/12 -.0001/AH15-4 774 1180
LMB12UU bearing 5 95 LMB12UU-AJ 5 93 LMB12UU-OP 4 76 3/4 19.05 0.75 19.05 0/-.00030 0/-7 0/-.00040 0/-10 31.750/1.2500 0/-.00065 0/-16 1.6250/41.275 0/-.008 0/-200 1.1657/29.61 0/-.008 0/-200 .0559/1.422 1.1760/29.870 .06/1.5 .4375/11.1125 60° .0004/10 .0006/15 -.0002/AH15-4 862 1370
LMB16UU bearing 6 200 LMB16UU-AJ 6 198 LMB16UU-OP 5 170 1 25.4 1 25.4 0/-.00030 0/-7 0/-.00040 0/-10 39.688/1.5625 0/-.00065 0/-16 2.2500/57.150 0/-.012 0/-300 1.7547/44.57 0/-.012 0/-300 .0679/1.727 1.4687/37.306 .06/1.5 .5625/14.2875 50° .0004/10 .0006/15 -.0002/AH15-4 980 1570
LMB20UU bearing 6 440 LMB20UU-AJ 6 430 LMB20UU-OP 5 370 1-1/4 31.75 1.25 31.75 0/-.00035 0/-8 0/-.00050 0/-12 50.800/2.0000 0/-.00075 0/-19 2.6250/66.675 0/-.012 0/-300 2.0047/50.92 0/-.012 0/-300 .0679/1.727 1.8859/47.904 .10/2.5 .625/15.875 50° .0005/12 .0008/20 -.0003-8 1570 2740
LMB24UU bearing 6 670 LMB24UU-AJ 6 660 LMB24UU-OP 5 570 1-1/2 38.1 1.5 38.1 0/-.00035 0/-8 0/-.00050 0/-12 60.325/2.3750 0/-.00075 0/-19 3.0000/76.200 0/-.012 0/-300 2.4118/61.26 0/-.012 0/-300 .0859/2.184 2.2389/56.870 .12/3 .75/19.05 50° .0005/12 .0008/20 -.0003-8 2180 4020
LMB32UU bearing 6 1 LMB32UU-AJ 6 1120 LMB32UU-OP 5 980 2 50.8 2 50.8 0/-.00035 0/-8 0/-.00050 0/-12 76.200/3.0000 0/-.00090 0/-22 4.0000/101.600 0/-.012 0/-300 3.1917/81.07 0/-.012 0/-300 .1029/2.616 2.8379/72.085 .12/3 1.0/25.40 50° .0007/17 .0010/25 -.0005-13 3820 7940
